AI 摘要- DeepSeek
使用 React Three Fiber、Three.js、SDF Text 和 Rapier 实现仿 Miside 3D 字体物理动画，涵盖字形分割、状态机、相机视差和移动端性能。
提示
本文在 React Three Fiber 场景中将每个字形拆分为独立的物理刚体，实现“逐字显现—保持—释放—坠落—消失”的动画。实现重点是字形分割、SDF 文本渲染、刚体生命周期和移动端性能控制。
提示

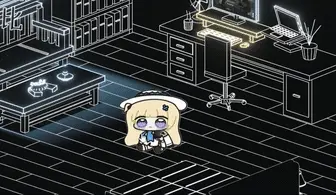

可在个人主站查看效果。文章中的动画速度受设备性能和浏览器调度影响，不能作为性能基准。
部分参考效果包含“先上抬再坠落”的阶段，本文未实现该阶段；需要时可以在释放状态机中增加对应过渡。
技术栈
| 类别 | 技术 | 用途 |
|---|---|---|
| 框架 | React 19 + TypeScript | 组件化 UI 与类型安全 |
| 构建 | Vite | 开发服务器与打包 |
| 3D 渲染 | Three.js + @react-three/fiber | 场景、相机、字形渲染 |
| 物理引擎 | @react-three/rapier (Rapier) | 刚体、碰撞检测、重力模拟 |
| SDF 字体 | @react-three/drei Text | 高质量 3D 文本渲染 |
| 状态管理 | Zustand room-store | 短语触发、清除、计数 |
| 测试 | Vitest | 纯函数层单元测试 |
架构总览
┌─────────────────────────────────────────────────────┐│ layer.tsx ││ 懒加载门面 · 动态导入 physics · ErrorBoundary │└──────────────────────┬──────────────────────────────┘ │ 导入┌──────────────────────▼──────────────────────────────┐│ physics.tsx ││ Three.js 渲染 · Rapier 物理 · 时序驱动 · 碰撞体 │└──────────────────────┬──────────────────────────────┘ │ 调用┌──────────────────────▼──────────────────────────────┐│ core.ts ││ 字形分割 · 排版 · 确定性随机 · 时序状态机 · 纯函数 │└─────────────────────────────────────────────────────┘核心实现原理
1. 字形分割 — Intl.Segmenter
使用浏览器原生 Intl.Segmenter 按书写单位分割文本，确保中文单字、拉丁字母、emoji 序列（如 👨👩👧👦）不被拆散。
const segmenter = new Intl.Segmenter('zh-CN', { granularity: 'grapheme' });function segmentGraphemes(value: string) { return Array.from(segmenter.segment(value), (part) => part.segment);}2. 确定性随机 — 种子哈希 + Fisher-Yates
同一短语每次生成完全一致的动画序列，保证可复现。使用 FNV-1a 哈希将短语转为种子，再用线性同余生成器产生伪随机数。
3. 排版 — 锚点居中 + 自动换行
每个短语以一个 3D 空间锚点为中心，字形按行向左右均匀展开，上下居中。支持宽窄字符（如 i 与 W 宽度不同）和自动换行。
// 核心：每行从 -width/2 开始排列，确保整行居中const width = line.reduce((sum, glyph) => sum + glyph.width, 0);let cursor = -width / 2;return line.map((glyph) => { const x = cursor + glyph.width / 2; cursor += glyph.width; return { ...glyph, x, y: totalHeight / 2 - lineIndex * lineHeight };});4. 时序状态机 — 四阶段生命周期
每个字形经历四个阶段，由 advanceTimelineGlyph 纯函数驱动：
hidden ──(showAt)──→ held ──(releaseAt)──→ dynamic ──(clear)──→ clearing ──(320ms)──→ 移除 │ │ 打字机逐字出现 Rapier 物理接管 保持位置不变 impulse + 角速度 无物理碰撞 碰撞 + 坠落- hidden → held：

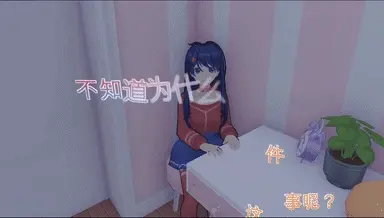

showAfterMs递增实现打字机效果（每字 65-96ms） - held → dynamic：Fisher-Yates 打乱释放顺序，实现凌乱飘散效果
- dynamic → clearing：触发条件：超出边界（y < -2.2）、物理休眠（settle）、短语数量超限、手动 clear
5. 物理模拟 — Rapier 集成
使用 @react-three/rapier 将每个字形作为独立刚体，释放时施加冲量和角速度。
// 物理参数gravity: [0, -200, 0] // 重力加速度angularDamping: 2.8 // 角阻尼linearDamping: 0.05 // 线阻尼restitution: 0.16 // 弹性friction: 0.72 // 摩擦力
// 房间碰撞体（6 面墙壁 + 3 件家具顶面 + 书架层板）<CuboidCollider args={[10, 0.06, 8.5]} position={[0, -0.91, 0]} /> // 地板6. 相机朝向
字形始终面向相机（通过 Quaternion 继承相机旋转），但保持自身在锚点周围的局部偏移量，随相机旋转产生视差效果。
const cameraQuaternion = camera.quaternion.clone();const phraseQuaternion = cameraQuaternion.clone() .multiply(new Quaternion().setFromEuler(new Euler(...plan.tilt)));
// 字形位置 = 锚点 + 右向量×x + 上向量×y + 前向量×zconst position = new Vector3(...anchor) .addScaledVector(right, plan.x) .addScaledVector(up, plan.y);7. 响应式与可访问性
| 场景 | 限制 | 行为 |
|---|---|---|
| 桌面端 | 3 条短语 / 72 字形 | 完整物理动画 |
| 移动端 (<720px) | 2 条短语 / 42 字形 | 缩小字号范围 |
| prefers-reduced-motion | 无限制 | 跳过物理，直接 held 后 clearing |
8. 懒加载与错误边界
layer.tsx 使用动态 import() 延迟加载 physics 模块，ErrorBoundary 捕获字体/WebGL 加载失败，优雅降级。
// 动态导入let physicsModule: Promise<{ default: ComponentType<PhysicsLayerProps> }> | null = null;function loadPhysicsModule() { physicsModule ??= import('./physics'); return physicsModule;}完整代码
core.ts — 纯函数层
// 移动端断点：小于此宽度启用移动端限制export const DOLL_WORD_MOBILE_BREAKPOINT = 720;
// 并发限制：最多同时活跃的短语数和字形数export interface DollWordLimits { activePhrases: number; glyphs: number;}
// 字形排版布局：每个字形在锚点周围的偏移位置export interface GlyphLayout { grapheme: string; // 字形文本 height: number; // 字形高度 isWhitespace: boolean; line: number; // 所在行索引 sourceIndex: number; // 在原字符串中的位置 width: number; x: number; // 相对于锚点的水平偏移 y: number; // 相对于锚点的垂直偏移}
// 字形动画计划：继承布局信息，追加物理和时序参数export interface GlyphPlan extends GlyphLayout { angularVelocity: [number, number, number]; // 释放时的角速度 (x, y, z) impulse: [number, number, number]; // 释放时的冲量 (x, y, z) releaseAfterMs: number | null; // 释放延迟（毫秒），null 表示不释放 showAfterMs: number; // 显示延迟（毫秒），实现打字机效果}
// 完整的爆发动画计划：包含所有字形的时序和物理参数export interface BurstPlan { anchorIndex: number; // 锚点索引 fontIndex: number; // 字体索引 fontSize: number; // 3D 场景中的字号 glyphs: GlyphPlan[]; // 每个字形的动画计划 holdMs: number; // 保持阶段持续时间 mode: 'motion' | 'reduced'; // 完整动画 / 简化模式 releaseIntervalMs: number; // 释放间隔时间 releaseOrder: number[]; // 释放顺序（打乱后的索引） seed: number; // 随机种子 spawn: [number, number, number]; // 生成位置随机因子 tilt: [number, number, number]; // 短语整体倾斜角度 typingIntervalMs: number; // 打字机间隔时间}
// 爆发计划配置选项export interface BurstPlanOptions { anchorCount: number; // 可用锚点数量 fontCount: number; // 可用字体数量 mobile: boolean; // 是否移动端 reducedMotion?: boolean; // 是否减少动画}
// 时间线字形状态：驱动每个字形在四阶段状态机中流转export interface TimelineGlyph { clearingStartedAt: number | null; // 清除开始时间戳 id: string; releaseAt: number | null; // 计划释放时间 showAt: number; // 显示时间 stage: 'hidden' | 'held' | 'dynamic' | 'clearing'; // 四阶段状态}
// 使用 Intl.Segmenter 按书写单位分割文本，Firefox 旧版 fallback 到 Array.fromconst segmenter = typeof Intl.Segmenter === 'undefined' ? null : new Intl.Segmenter('zh-CN', { granularity: 'grapheme' });
const emojiPattern = /\p{Extended_Pictographic}/u;const narrowPattern = /[\u0021-\u007e]/u;
/** 将字符串分割为独立字形，支持中文单字、拉丁字母、emoji 序列 */export function segmentGraphemes(value: string) { if (segmenter === null) return Array.from(value); return Array.from(segmenter.segment(value), (part) => part.segment);}
/** FNV-1a 哈希：将短语内容转为 32bit 种子，保证同一短语每次生成一致动画 */export function hashDollWordSeed(id: number, phrase: string) { let hash = 0x811c9dc5; const input = `${String(id)}:${phrase}`; for (let index = 0; index < input.length; index += 1) { hash ^= input.charCodeAt(index); hash = Math.imul(hash, 0x01000193); } return hash >>> 0;}
/** 线性同余伪随机数生成器：基于种子产生确定性随机序列 */export function createSeededRandom(seed: number) { let state = seed >>> 0; return () => { state = (state + 0x6d2b79f5) >>> 0; let value = state; value = Math.imul(value ^ (value >>> 15), value | 1); value ^= value + Math.imul(value ^ (value >>> 7), value | 61); return ((value ^ (value >>> 14)) >>> 0) / 4_294_967_296; };}
/** Fisher-Yates 洗牌：生成打乱的释放顺序索引数组 */export function shuffledIndices(length: number, random: () => number) { const indices = Array.from({ length }, (_, index) => index); for (let index = indices.length - 1; index > 0; index -= 1) { const swapIndex = Math.floor(random() * (index + 1)); const current = indices[index]; const swap = indices[swapIndex]; if (current === undefined || swap === undefined) continue; indices[index] = swap; indices[swapIndex] = current; } return indices;}
/** 根据字形类型预估宽度：空格、emoji、窄字符、全角字符各有不同 */function glyphAdvance(grapheme: string, fontSize: number) { if (/^\s+$/u.test(grapheme)) return fontSize * 0.38; if (emojiPattern.test(grapheme)) return fontSize * 1.12; if (narrowPattern.test(grapheme)) { if (/[ilI1.,'`:;|!]/u.test(grapheme)) return fontSize * 0.34; if (/[mwMW@#%&]/u.test(grapheme)) return fontSize * 0.82; return fontSize * 0.62; } return fontSize;}
/** 排版：将字形数组按行排列，锚点居中，支持自动换行 */export function layoutGraphemes( graphemes: string[], { fontSize, lineHeight = fontSize * 1.2, maxWidth, }: { fontSize: number; lineHeight?: number; maxWidth: number; },) { const lines: Omit<GlyphLayout, 'line' | 'x' | 'y'>[][] = [[]]; let lineWidth = 0;
graphemes.forEach((grapheme, sourceIndex) => { // 遇到换行符则另起一行 if (grapheme === '\n' || grapheme === '\r\n') { lines.push([]); lineWidth = 0; return; }
const width = glyphAdvance(grapheme, fontSize); let line = lines.at(-1); if (line === undefined) return; // 超过最大宽度自动换行 if (line.length > 0 && lineWidth + width > maxWidth) { line = []; lines.push(line); lineWidth = 0; } line.push({ grapheme, height: fontSize, isWhitespace: /^\s+$/u.test(grapheme), sourceIndex, width, }); lineWidth += width; });
// 计算每行位置，整行居中 const totalHeight = Math.max(0, lines.length - 1) * lineHeight; return lines.flatMap((line, lineIndex) => { const width = line.reduce((sum, glyph) => sum + glyph.width, 0); let cursor = -width / 2; return line.map((glyph) => { const x = cursor + glyph.width / 2; cursor += glyph.width; return { ...glyph, line: lineIndex, x, y: totalHeight / 2 - lineIndex * lineHeight, }; }); });}
/** 生成一次完整爆发动画计划：包含打字机时序、物理参数、释放顺序等 */export function createBurstPlan( id: number, phrase: string, { anchorCount, fontCount, mobile, reducedMotion = false }: BurstPlanOptions,): BurstPlan { const seed = hashDollWordSeed(id, phrase); const random = createSeededRandom(seed); const fontSize = (mobile ? 0.68 : 0.86) + random() * (mobile ? 0.18 : 0.26); const typingIntervalMs = 65 + Math.floor(random() * 31); const holdMs = 470 + Math.floor(random() * 61); const releaseIntervalMs = 72 + Math.floor(random() * 48); const layout = layoutGraphemes(segmentGraphemes(phrase), { fontSize, maxWidth: mobile ? 3.35 : 5.1, }); const physicalLayoutIndices = layout .map((glyph, index) => (glyph.isWhitespace ? -1 : index)) .filter((index) => index >= 0); const releaseOrder = shuffledIndices(physicalLayoutIndices.length, random).map( (physicalIndex) => physicalLayoutIndices[physicalIndex] ?? 0, ); const releaseRank = new Map(releaseOrder.map((layoutIndex, rank) => [layoutIndex, rank])); const typingEnd = segmentGraphemes(phrase).length * typingIntervalMs;
return { anchorIndex: Math.floor(random() * Math.max(1, anchorCount)), fontIndex: Math.floor(random() * Math.max(1, fontCount)), fontSize, glyphs: layout.map((glyph, layoutIndex) => { const rank = releaseRank.get(layoutIndex); return { ...glyph, angularVelocity: [(random() - 0.5) * 30, (random() - 0.5) * 24, (random() - 0.5) * 28], impulse: [(random() - 0.5) * 0.035, -4 - random() * 3, (random() - 0.5) * 0.024], releaseAfterMs: reducedMotion || rank === undefined ? null : typingEnd + holdMs + rank * releaseIntervalMs, showAfterMs: reducedMotion ? 0 : glyph.sourceIndex * typingIntervalMs, }; }), holdMs, mode: reducedMotion ? 'reduced' : 'motion', releaseIntervalMs, releaseOrder, seed, spawn: [random(), random(), random()], tilt: [(random() - 0.5) * 0.12, (random() - 0.5) * 0.16, (random() - 0.5) * 0.16], typingIntervalMs, };}
/** 根据移动端状态返回并发限制 */export function getDollWordLimits(mobile: boolean): DollWordLimits { return mobile ? { activePhrases: 2, glyphs: 42 } : { activePhrases: 3, glyphs: 72 };}
/** 推进单个字形的时间线状态：hidden → held → dynamic */export function advanceTimelineGlyph(glyph: TimelineGlyph, now: number): TimelineGlyph { // hidden → held（到达显示时间） if (glyph.stage === 'hidden' && now >= glyph.showAt) { // 如果显示时间和释放时间同时到达，直接跳到 dynamic if (glyph.releaseAt !== null && now >= glyph.releaseAt) return { ...glyph, stage: 'dynamic' }; return { ...glyph, stage: 'held' }; } // held → dynamic（到达释放时间） if (glyph.stage === 'held' && glyph.releaseAt !== null && now >= glyph.releaseAt) { return { ...glyph, stage: 'dynamic' }; } return glyph;}
/** 将所有可见字形标记为 clearing 状态，开始清除动画 */export function markTimelineClearing<T extends TimelineGlyph>(glyphs: T[], now: number) { return glyphs.map((glyph) => glyph.stage === 'hidden' ? null : { ...glyph, clearingStartedAt: now, releaseAt: null, stage: 'clearing' as const }, );}
/** 找出超出限制的最旧字形 ID，用于溢出淘汰 */export function oldestOverflowIds( glyphs: { createdAt: number; id: string; stage: TimelineGlyph['stage'] }[], limit: number,) { const visible = glyphs .filter((glyph) => glyph.stage === 'held' || glyph.stage === 'dynamic') .sort((left, right) => left.createdAt - right.createdAt); return visible.slice(0, Math.max(0, visible.length - limit)).map((glyph) => glyph.id);}layer.tsx — 懒加载门面
import { Component, Suspense, useCallback, useEffect, useRef, useState, type ComponentType, type ReactNode,} from 'react';
import { useRoomStore } from '@/stores/room-store';
// 物理渲染层 Props：onReady 回调在字体预热完成后触发interface PhysicsLayerProps { onReady: () => void;}
// 模块级缓存：避免重复动态导入let physicsModule: Promise<{ default: ComponentType<PhysicsLayerProps> }> | null = null;
/** 懒加载 physics 模块，仅在首次调用时执行实际 import */function loadPhysicsModule() { physicsModule ??= import('./physics'); return physicsModule;}
/** 错误边界：捕获字体 / WebGL 加载失败，优雅降级，不阻塞页面 */class DollWordErrorBoundary extends Component< { children: ReactNode; onFailure: () => void }, { failed: boolean }> { state = { failed: false };
static getDerivedStateFromError() { return { failed: true }; }
componentDidCatch(error: unknown) { console.warn('3D doll words were disabled because their assets failed to load.', error); // 通知 store 字形计数归零，清除所有引用 useRoomStore.getState().setDollWordCount(0); this.props.onFailure(); }
render() { return this.state.failed ? null : this.props.children; }}
/** 懒加载门面组件：动态导入 PhysicsLayer，加载失败时静默降级 */export function DollWordLayer({ onReady }: { onReady: () => void }) { const [PhysicsLayer, setPhysicsLayer] = useState<ComponentType<PhysicsLayerProps> | null>(null); const readyReported = useRef(false); const reportReady = useCallback(() => { if (readyReported.current) return; readyReported.current = true; onReady(); }, [onReady]);
useEffect(() => { if (PhysicsLayer !== null) return; let cancelled = false; void loadPhysicsModule() .then((module) => { if (!cancelled) setPhysicsLayer(() => module.default); }) .catch((error: unknown) => { console.warn('3D doll words could not be preloaded.', error); reportReady(); }); return () => { cancelled = true; // 组件卸载时取消未完成的加载 }; }, [PhysicsLayer, reportReady]);
if (PhysicsLayer === null) return null; return ( <DollWordErrorBoundary onFailure={reportReady}> <Suspense fallback={null}> <PhysicsLayer onReady={reportReady} /> </Suspense> </DollWordErrorBoundary> );}physics.tsx — 物理渲染层
import { Text } from '@react-three/drei';import { useFrame, useThree } from '@react-three/fiber';import { CuboidCollider, Physics, RigidBody, type RapierRigidBody } from '@react-three/rapier';import { useCallback, useEffect, useMemo, useRef, useState } from 'react';import { Euler, MathUtils, Quaternion, Vector3, type Group } from 'three';
import { profileConfig } from '@/config';import { useReducedMotion } from '@/hooks/use-reduced-motion';import { advanceTimelineGlyph, createBurstPlan, getDollWordLimits, oldestOverflowIds, segmentGraphemes, type GlyphPlan, type TimelineGlyph,} from '@/scene/doll-words/core';import { useRoomStore } from '@/stores/room-store';import type { CameraZone } from '@/types/room';
type VectorTuple = [number, number, number];type QuaternionTuple = [number, number, number, number];
// 场景字形：继承 TimelineGlyph，追加渲染和物理所需的所有字段interface SceneGlyph extends TimelineGlyph { angularVelocity: VectorTuple; burstId: number; character: string; createdAt: number; expiresAt: number | null; // 过期时间，到期后自动清除 fontSize: number; fontSource: string; // 字体文件路径 hadPhysics: boolean; height: number; impulse: VectorTuple; mode: 'motion' | 'reduced'; position: VectorTuple; quaternion: QuaternionTuple; width: number;}
// 各阶段持续时间常量（毫秒）const clearDurationMs = 320; // 清除动画时长const reducedVisibleMs = 820; // 简化模式下可见时长const fallingVisibleMs = 2_100; // 物理坠落后可停留时间const settledVisibleMs = 700; // 休眠后额外停留时间const sdfGlyphSize = 64; // SDF 纹理尺寸
// 预加载所有短语用到的字形，避免首次渲染卡顿const preloadCharacters = Array.from( new Set(profileConfig.intro.audioPhrases.flatMap(({ phrase }) => segmentGraphemes(phrase))),).join('');
// 不同相机视角下的字形生成范围const spawnBounds: Record< CameraZone, { x: [number, number]; y: [number, number]; z: [number, number] }> = { lounge: { x: [-8.1, 7.2], y: [2.15, 3.8], z: [-1.4, 6.4] }, overview: { x: [-7.8, 7.3], y: [2.2, 4.05], z: [-6.3, 6.1] }, workspace: { x: [-8.1, 5.4], y: [2.3, 4.1], z: [-7.2, -1.15] },};
/** 在指定相机视角内随机生成锚点位置 */function randomSpawnPosition(zone: CameraZone, random: [number, number, number]): VectorTuple { const bounds = spawnBounds[zone]; return [ MathUtils.lerp(bounds.x[0], bounds.x[1], random[0]), MathUtils.lerp(bounds.y[0], bounds.y[1], random[1]), MathUtils.lerp(bounds.z[0], bounds.z[1], random[2]), ];}
/** 房间静态碰撞体：地板、墙壁、家具顶面、书架层板 */function StaticRoomColliders() { return ( <RigidBody type="fixed" colliders={false} name="doll-word-room-colliders"> {/* 地板 */} <CuboidCollider args={[10, 0.06, 8.5]} position={[0, -0.91, 0]} /> {/* 四面墙壁 */} <CuboidCollider args={[0.08, 4.6, 8.6]} position={[-10.04, 3.35, 0]} /> <CuboidCollider args={[0.08, 4.6, 8.6]} position={[10.04, 3.35, 0]} /> <CuboidCollider args={[10.1, 4.6, 0.08]} position={[0, 3.35, -8.54]} /> <CuboidCollider args={[10.1, 4.6, 0.08]} position={[0, 3.35, 8.54]} /> {/* 家具顶面 */} <CuboidCollider args={[3.9, 0.1, 1.125]} position={[-0.9, 1.23, -6.55]} /> <CuboidCollider args={[2.825, 0.065, 2.225]} position={[6.76, 0.37, 5.05]} /> <CuboidCollider args={[0.91, 0.12, 3.75]} position={[-8.48, 0.17, 0.22]} /> <CuboidCollider args={[0.93, 0.11, 2.3]} position={[-5.52, 0.17, 0.22]} /> {/* 书架层板 */} {[-0.77, 0.46, 1.71, 2.96].map((y) => ( <CuboidCollider key={y} args={[0.52, 0.08, 1.725]} position={[-9.34, y, -6.55]} /> ))} <CuboidCollider args={[0.52, 2.025, 0.085]} position={[-9.34, 1.09, -8.19]} /> <CuboidCollider args={[0.52, 2.025, 0.085]} position={[-9.34, 1.09, -4.91]} /> <CuboidCollider args={[0.05, 1.85, 1.725]} position={[-9.83, 1.09, -6.55]} /> </RigidBody> );}
/** 预热完成信号：触发 onReady 回调 */function WarmupReady({ onReady }: { onReady: () => void }) { useEffect(() => onReady(), [onReady]); return null;}
/** 字体预热：在不可见组中提前渲染所有字形，生成 SDF 纹理缓存 */function FontWarmup({ onReady }: { onReady: () => void }) { return ( <> <group visible={false}> {profileConfig.intro.dollFonts.map((font) => ( <Text key={font.src} characters={preloadCharacters} font={font.src} fontSize={0.1} sdfGlyphSize={sdfGlyphSize} > {preloadCharacters} </Text> ))} </group> <WarmupReady onReady={onReady} /> </> );}
/** 单个字形文本渲染：根据主题切换颜色，带轮廓描边 */function GlyphText({ character, fontSize, fontSource,}: Pick<SceneGlyph, 'character' | 'fontSize' | 'fontSource'>) { const theme = useRoomStore((state) => state.theme); const face = theme === 'light' ? '#fffefd' : '#090a0e'; const outline = theme === 'light' ? '#111217' : '#fffaff';
return ( <Text anchorX="center" anchorY="middle" color={face} fillOpacity={1} font={fontSource} fontSize={fontSize} outlineColor={outline} outlineOpacity={1} outlineWidth={fontSize * 0.025} sdfGlyphSize={sdfGlyphSize} > {character} </Text> );}
/** 字形视觉容器：在 clearing 阶段执行缩放消失动画 */function GlyphVisual({ glyph }: { glyph: SceneGlyph }) { const animated = useRef<Group>(null);
useFrame(() => { const group = animated.current; if (group === null) return; const now = performance.now(); // clearing 阶段：从 1 缩放到 0.08 后消失 if (glyph.clearingStartedAt !== null) { const progress = MathUtils.clamp((now - glyph.clearingStartedAt) / clearDurationMs, 0, 1); const scale = MathUtils.lerp(1, 0.08, progress); group.scale.setScalar(scale); } });
return ( <group ref={animated}> <GlyphText character={glyph.character} fontSize={glyph.fontSize} fontSource={glyph.fontSource} /> </group> );}
/** held 阶段：固定位置和朝向，无物理 */function HeldGlyph({ glyph }: { glyph: SceneGlyph }) { return ( <group position={glyph.position} quaternion={glyph.quaternion}> <GlyphVisual glyph={glyph} /> </group> );}
/** 物理字形：dynamic 阶段由 Rapier 驱动刚体碰撞和坠落 */function PhysicsGlyph({ glyph, onRemove, onSleep,}: { glyph: SceneGlyph; onRemove: (id: string) => void; onSleep: (id: string) => void;}) { const body = useRef<RapierRigidBody>(null); const frame = useRef(0); const dynamic = glyph.stage === 'dynamic';
// 进入 dynamic 时施加冲量和角速度 useEffect(() => { if (!dynamic) return; const rigidBody = body.current; if (rigidBody === null) return; rigidBody.applyImpulse({ x: glyph.impulse[0], y: glyph.impulse[1], z: glyph.impulse[2] }, true); rigidBody.setAngvel( { x: glyph.angularVelocity[0], y: glyph.angularVelocity[1], z: glyph.angularVelocity[2], }, true, ); }, [dynamic, glyph.angularVelocity, glyph.impulse]);
// clearing 阶段禁用刚体 useEffect(() => { if (glyph.clearingStartedAt === null) return; body.current?.setEnabled(false); }, [glyph.clearingStartedAt]);
// 每帧检测是否超出边界，超出则移除 useFrame(() => { if (!dynamic) return; frame.current += 1; if (frame.current % 8 !== 0 || body.current === null) return; const position = body.current.translation(); if (position.y < -2.2 || Math.abs(position.x) > 11.2 || Math.abs(position.z) > 9.7) { onRemove(glyph.id); } });
return ( <RigidBody ref={body} canSleep // 允许休眠以节约性能 colliders={false} angularDamping={2.8} // 角阻尼，让旋转逐渐停止 linearDamping={0.05} // 线阻尼 name={`doll-word-${glyph.id}`} onSleep={() => { if (dynamic) onSleep(glyph.id); // 物理休眠后触发过期计时 }} position={glyph.position} quaternion={glyph.quaternion} softCcdPrediction={0.55} // 连续碰撞检测，防止高速穿透 type={dynamic ? 'dynamic' : 'fixed'} > <CuboidCollider args={[Math.max(0.08, glyph.width * 0.43), Math.max(0.12, glyph.height * 0.44), 0.065]} friction={0.72} mass={0.24} restitution={0.16} // 弹性系数 /> <GlyphVisual glyph={glyph} /> </RigidBody> );}
/** 计算字形在 3D 世界中的位置和朝向：锚点偏移 + 相机对齐 */function glyphWorldTransform( plan: GlyphPlan, anchor: VectorTuple, cameraQuaternion: Quaternion, phraseQuaternion: Quaternion,) { // 以相机朝向为基准计算右、上、前向量 const right = new Vector3(1, 0, 0).applyQuaternion(cameraQuaternion); const up = new Vector3(0, 1, 0).applyQuaternion(cameraQuaternion); const forward = new Vector3(0, 0, -1).applyQuaternion(cameraQuaternion); const position = new Vector3(...anchor) .addScaledVector(right, plan.x) .addScaledVector(up, plan.y) .addScaledVector(forward, (plan.sourceIndex % 3) * 0.008); return { position: position.toArray(), quaternion: phraseQuaternion.toArray(), };}
/** 核心字形管理组件：处理爆发、清除、时间线驱动、溢出淘汰 */function DollWordBodies() { const burst = useRoomStore((state) => state.dollWordBurst); const cameraZone = useRoomStore((state) => state.cameraZone); const clearRevision = useRoomStore((state) => state.dollWordClearRevision); const setCount = useRoomStore((state) => state.setDollWordCount); const reducedMotion = useReducedMotion(); const { camera, size } = useThree(); const mobile = size.width < 720; const limits = getDollWordLimits(mobile); const [glyphs, setGlyphs] = useState<SceneGlyph[]>([]); const lastBurstId = useRef(0); const lastClearRevision = useRef(clearRevision);
// 监听爆发事件：生成新字形并淘汰旧短语 useEffect(() => { if (burst === null || burst.id === lastBurstId.current) return; lastBurstId.current = burst.id; const now = performance.now(); const fonts = profileConfig.intro.dollFonts; const plan = createBurstPlan(burst.id, burst.phrase, { anchorCount: 1, fontCount: fonts.length, mobile, reducedMotion, }); const anchor = randomSpawnPosition(cameraZone, plan.spawn); camera.updateMatrixWorld(); const cameraQuaternion = camera.quaternion.clone(); const phraseQuaternion = cameraQuaternion .clone() .multiply(new Quaternion().setFromEuler(new Euler(...plan.tilt))); const font = fonts[plan.fontIndex] ?? fonts[0]; if (font === undefined) return;
const additions = plan.glyphs .filter((glyph) => !glyph.isWhitespace) .map<SceneGlyph>((glyph, index) => { const transform = glyphWorldTransform(glyph, anchor, cameraQuaternion, phraseQuaternion); return { angularVelocity: glyph.angularVelocity, burstId: burst.id, character: glyph.grapheme, clearingStartedAt: null, createdAt: now + index * 0.001, expiresAt: reducedMotion ? now + reducedVisibleMs : null, fontSize: plan.fontSize, fontSource: font.src, hadPhysics: false, height: glyph.height, id: `${String(burst.id)}-${String(glyph.sourceIndex)}`, impulse: glyph.impulse, mode: plan.mode, position: transform.position, quaternion: transform.quaternion, releaseAt: glyph.releaseAfterMs === null ? null : now + Math.max(0, glyph.releaseAfterMs), showAt: now + glyph.showAfterMs, stage: reducedMotion ? 'held' : 'hidden', width: glyph.width, }; });
let cancelled = false; queueMicrotask(() => { if (cancelled) return; setGlyphs((current) => { // 淘汰超出短语数量限制的最旧短语 const activeBurstIds = Array.from( new Set( current .filter((glyph) => glyph.stage === 'hidden' || glyph.stage === 'held') .map((glyph) => glyph.burstId), ), ); const evictedBurstIds = new Set( activeBurstIds.slice(0, Math.max(0, activeBurstIds.length - limits.activePhrases + 1)), ); const retained = current.flatMap((glyph) => { if (!evictedBurstIds.has(glyph.burstId)) return [glyph]; if (glyph.stage === 'hidden') return []; if (glyph.stage === 'held') { return [ { ...glyph, clearingStartedAt: now, releaseAt: null, stage: 'clearing' as const }, ]; } return [glyph]; }); return [...retained, ...additions]; }); }); return () => { cancelled = true; }; }, [burst, camera, cameraZone, limits.activePhrases, mobile, reducedMotion]);
// 监听清除事件：将所有可见字形标记为 clearing useEffect(() => { if (clearRevision === lastClearRevision.current) return; lastClearRevision.current = clearRevision; const now = performance.now(); let cancelled = false; queueMicrotask(() => { if (cancelled) return; setGlyphs((current) => current.flatMap((glyph) => glyph.stage === 'hidden' ? [] : [ { ...glyph, clearingStartedAt: now, releaseAt: null, stage: 'clearing' as const, }, ], ), ); }); return () => { cancelled = true; }; }, [clearRevision]);
// 监听 reducedMotion 变化：切换到简化模式时清除所有物理字形 useEffect(() => { if (!reducedMotion) return; const now = performance.now(); let cancelled = false; queueMicrotask(() => { if (cancelled) return; setGlyphs((current) => current.flatMap((glyph) => { if (glyph.mode === 'reduced') return [glyph]; if (glyph.stage === 'hidden') return []; return [ { ...glyph, clearingStartedAt: now, releaseAt: null, stage: 'clearing' as const }, ]; }), ); }); return () => { cancelled = true; }; }, [reducedMotion]);
// 判断是否需要运行时间线驱动循环 const timelineActive = glyphs.some( (glyph) => glyph.stage === 'hidden' || glyph.stage === 'held' || glyph.stage === 'clearing' || glyph.clearingStartedAt !== null || glyph.expiresAt !== null, );
// 核心时间线驱动循环：每帧推进字形状态，处理过期和溢出 useEffect(() => { if (!timelineActive) return; let frame = 0; const tick = () => { const now = performance.now(); setGlyphs((current) => { let changed = false; let next = current.flatMap((glyph) => { // clearing 完成 → 移除 if ( glyph.clearingStartedAt !== null && now - glyph.clearingStartedAt >= clearDurationMs ) { changed = true; return []; } // 过期 → 进入 clearing if ( glyph.expiresAt !== null && now >= glyph.expiresAt && glyph.clearingStartedAt === null ) { changed = true; return [{ ...glyph, clearingStartedAt: now, stage: 'clearing' as const }]; } // 推进时间线状态（hidden → held → dynamic） const advanced = advanceTimelineGlyph(glyph, now) as SceneGlyph; if (advanced !== glyph) { changed = true; const justReleased = glyph.stage !== 'dynamic' && advanced.stage === 'dynamic'; return [ { ...advanced, expiresAt: justReleased ? now + fallingVisibleMs : advanced.expiresAt, hadPhysics: advanced.stage === 'dynamic' || glyph.hadPhysics, }, ]; } return [glyph]; });
// 字形数量溢出淘汰：移除最旧的字形 const overflowIds = new Set(oldestOverflowIds(next, limits.glyphs)); if (overflowIds.size > 0) { changed = true; next = next.map((glyph) => overflowIds.has(glyph.id) ? { ...glyph, clearingStartedAt: now, releaseAt: null, stage: 'clearing' as const } : glyph, ); } return changed ? next : current; }); frame = window.requestAnimationFrame(tick); }; frame = window.requestAnimationFrame(tick); return () => window.cancelAnimationFrame(frame); }, [limits.glyphs, timelineActive]);
// 统计当前可见字形数量，同步到 store const visibleCount = useMemo( () => glyphs.filter( (glyph) => glyph.clearingStartedAt === null && (glyph.stage === 'held' || glyph.stage === 'dynamic'), ).length, [glyphs], );
useEffect(() => setCount(visibleCount), [setCount, visibleCount]); useEffect(() => () => setCount(0), [setCount]);
const removeGlyph = useCallback((id: string) => { setGlyphs((current) => current.filter((glyph) => glyph.id !== id)); }, []);
const settleGlyph = useCallback((id: string) => { const expiresAt = performance.now() + settledVisibleMs; setGlyphs((current) => current.map((glyph) => glyph.id === id && (glyph.expiresAt === null || expiresAt < glyph.expiresAt) ? { ...glyph, expiresAt } : glyph, ), ); }, []);
// 渲染所有字形：held 阶段用 HeldGlyph，dynamic 阶段用 PhysicsGlyph return glyphs.map((glyph) => { if (glyph.stage === 'hidden') return null; if (glyph.mode === 'motion') { return ( <PhysicsGlyph key={glyph.id} glyph={glyph} onRemove={removeGlyph} onSleep={settleGlyph} /> ); } return <HeldGlyph key={glyph.id} glyph={glyph} />; });}
/** 物理场景入口：Rapier 物理世界 + 字体预热 + 房间碰撞体 + 字形管理 */export default function DollWordPhysics({ onReady }: { onReady: () => void }) { return ( <Physics colliders={false} gravity={[0, -200, 0]} timeStep={1 / 60} updateLoop="independent"> <FontWarmup onReady={onReady} /> <StaticRoomColliders /> <DollWordBodies /> </Physics> );}集成方式
在对应的 3D 房间场景中引入 Layer 组件，并传入 onReady 回调：
import { DollWordLayer } from '@/scene/doll-words/layer';
export function RoomScene({ onDollWordsReady }: { onDollWordsReady: () => void }) { return ( <> {/* 房间物体 */} <DollWordLayer onReady={onDollWordsReady} /> </> );}同时需要在状态管理中定义房间 store 的相关状态：
interface RoomState { dollWordBurst: { id: number; phrase: string } | null; dollWordClearRevision: number; dollWordCount: number; setDollWordCount: (count: number) => void; clearDollWords: () => void; spawnDollWords: (phrase: string) => void;}踩坑点 & 注意事项
1. Intl.Segmenter 兼容性
Firefox 和 Safari 较旧版本不支持 Intl.Segmenter。代码中做了 fallback，回退到 Array.from(value)，但 emoji 序列（如 👨👩👧👦）在回退模式下会被拆散。
2. Rapier 物理性能
- 每个字形是一个独立
RigidBody，同时存在过多时（>72）可能影响性能 - 使用
canSleep让静止的刚体自动休眠 - 超出边界的字形直接移除，不等待清除动画
- 使用
softCcdPrediction避免高速穿透
3. 字体预热
<Text> 组件首次渲染时会加载字体并生成 SDF 纹理，这会导致卡顿。使用不可见 <group visible={false}> 在加载阶段即预热所有用到的字形。
4. Camera 与布局
字形位置是相对于锚点的局部偏移，但朝向跟随相机。这导致旋转相机时字形产生视差，需要确保 camera.updateMatrixWorld() 在计算前被调用。
5. 状态更新的竞态
setGlyphs 在多个 useEffect 中同时触发，使用 queueMicrotask 延迟到微任务队列执行，避免 React 的批量更新问题。同时用 cancelled flag 防止组件卸载后更新。
性能对比
| 指标 | 旧版 CSS 实现 | 新版 3D 物理实现 |
|---|---|---|
| 渲染方式 | CSS 2D transform | Three.js SDF Text |
| 动画驱动 | CSS animation | requestAnimationFrame + Rapier |
| 碰撞检测 | 无 | 房间墙壁 + 家具碰撞体 |
| 字体支持 | 系统字体 | 4 种自定义 woff/ttf 字体 |
| 单次性能 | 轻量 | 约 0.3-0.8ms 每帧（72 字形） |
| 最大并发 | 无限（CSS） | 72 字形（硬限制） |
总结
- 核心在于将排版布局、时序控制、物理模拟三层解耦，纯函数层（core.ts）不含任何 Three.js 或 React 依赖，可独立测试
- 确定性随机保证同一短语每次播放效果一致，Seed 基于短语内容哈希，适合需要回放或录制的场景
- 四阶段状态机（hidden → held → dynamic → clearing）配合 requestAnimationFrame 驱动，避免使用 setInterval 的不精确性
- 相机朝向 + 锚点偏移的方案兼顾了”面向用户”和”空间位置感”两个需求
